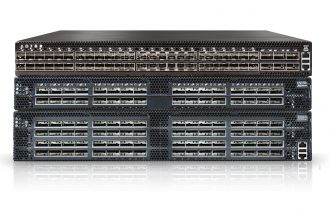

Mellanox Spectrum SN3000 Open Ethernet Switches

The SN3000 Ethernet switches are ideal for leaf and spine data center network solutions, allowing maximum flexibility, with port speeds spanning from 1GbE to 400GbE per port and port density that enables full rack connectivity to any server at any speed. Powered by the 50G PAM-4 based Spectrum™-2 ASIC, the SN3000 series carries a whopping bidirectional switching capacity of up to 12.8Tb/s with a landmark 8.33Bpps packet processing rate.

Purpose built for the modern datacenter, the SN3000 switches combine high performance packet processing, rich datacenter features, cloud network scale and visibility with flexible form factors.

Mellanox Spectrum SN3000 Open Ethernet Switches

model no.

description

key features

Mellanox SN3800 is well-suited to answer the challenging needs of large virtualized data centers and cloud
environments

  • a 64-port 100GbE switch system that is ideal for spine/super-spine
    applications
  • With a landmark 8.33Bpps processing capacity
  • 12.8Tb/s throughput in a dense 2U form factor
  • offers diverse connectivity in combinations of 1/25/40/50/100GbE

Mellanox SN3700 200GbE spine/super-spine offers 32 ports of 200GbE in a compact 1U form factor

  • Carries a throughput of 12.8Tb/s
  • With a landmark 8.33Bpps processing capacity
  • With port speeds spanning from 10GbE to 200GbE per port

Mellanox SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables

  • With ports spanning from 1GbE to 100GbE
  • SN3700C ports are fully splittable to up to 128 x 10/25GbE ports

Equipped with 48 ports of 1/25/50GbE and 6 ports of up to 400GbE, SN3510 is an ideal leaf
platform

  • 400GbE ports can optionally be split into up to 48 ports running 50GbE
  • Up to 9.6Tb/s with 7.14Bpps processing capacity
  • Equipped with QSFP-DD ports
  • SN3510 enables seamless use of QSFP28/56 connections

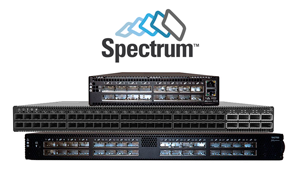

Mellanox Spectrum SN2000 Ethernet Switches

The Mellanox Open Ethernet switch family delivers the highest performance and port density with a complete chassis and fabric management solution enabling converged data centers to operate at any scale while reducing operational costs and infrastructure complexity.

Mellanox Spectrum SN2000 Ethernet Switches

model no.

description

key features

Half-width 10/25GbE and 100GbE Ethernet Switch for Hyperconverged Infrastructures and ESF

  • 18-port 10/25GbE + 4-port 100GbE Hyperconverged Switch
  • 4 splittable ports of 40/100GbE
  • up to 1.7Tb/s aggregate throughput

Half-Width 16-port Non-blocking 100GbE Open Ethernet Switch System

  • 3.2Tb/s Wire speed switching
  • 2.38B packets-per-second
  • 16 40/56/100GbE ports in 1RU
  • Up to 64 10/25-ports up to 32 50GbE ports

Spectrum-based 48-port 25GbE + 8-port 100GbE Open Ethernet Platform

  • 4Tb/s Wire Speed Switching
  • 2.98B packets-per-second
  • 8 ports of 40/56/100GbE in 1RU
  • Up to 48 ports of 10/25GbE
  • Up to 16 ports of 50GbE

Spectrum-based 32-port 100GbE Open Ethernet Platform

  • 6.4Tb/s Wire Speed Switching
  • 4.77B packets-per-second
  • 32 40/56/100GbE ports in 1RU
  • Up to 64 10/25/50GbE ports

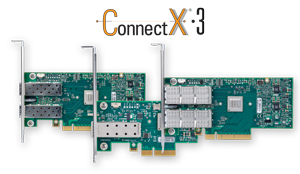

Mellanox Ethernet Cards

ConnectX-3 Pro adapter cards with 10/40/56 Gigabit Ethernet connectivity with hardware offload engines to Overlay Networks (“Tunneling”), provide the highest performing and most flexible interconnect solution for PCI Express Gen3 servers used in public and private clouds, enterprise data centers, and high performance computing.

Mellanox Ethernet Cards

model no.

description

key features

Single 10GbE with hardware offload engines to Overlay Networks (“Tunneling”)

  • 1us MPI ping latency
  • Up to 40/56 Gigabit Ethernet per port
  • 14.2cm x 5.3cm Dimension w/o bracket
  • PCI Express 3.0 (up to 8GT/s)



Dual 10GbE with hardware offload engines to Overlay Networks (“Tunneling”)

  • 1us MPI ping latency
  • Up to 40/56 Gigabit Ethernet per port
  • 14.2cm x 5.3cm Dimension w/o bracket
  • PCI Express 3.0 (up to 8GT/s)

Single 40/56Gbe with hardware offload engines to Overlay Networks (“Tunneling”)

  • 1us MPI ping latency
  • Up to 40/56 Gigabit Ethernet per port
  • 14.2cm x 5.3cm Dimension w/o bracket
  • PCI Express 3.0 (up to 8GT/s)

Dual 40/56Gbe with hardware offload engines to Overlay Networks (“Tunneling”)

  • 1us MPI ping latency
  • Up to 40/56 Gigabit Ethernet per port
  • 14.2cm x 5.3cm Dimension w/o bracket
  • PCI Express 3.0 (up to 8GT/s)

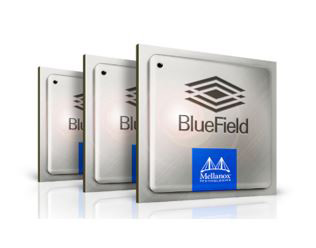

BlueField™ SmartNIC Ethernet

BlueField’s Ethernet SmartNIC solutions combine Arm® processing power with advanced network offloads to accelerate a multitude of security, networking and storage applications.

Based on the BlueField system-on-chip (SoC) programmable network engine, BlueField SmartNICs integrate the Mellanox ConnectX®-5 network controller with Arm multicore processors and cryptology options to deliver an innovative and high-performance programmable platform.

Providing unmatched scalability and efficiency, BlueField SmartNICs are the ideal adapters for accelerating the most demanding workloads in datacenters, Web2.0, cloud, and storage environments.

model no.

description

key features

An innovative and high-performance programmable networking engine

  • Dedicated hardware offload for NVMeover-Fabrics (NVMe-oF)
  • Dual-port 25GbE PCIe Gen4.0 x8
  • Dual-port 100GbE PCIe Gen4.0 x16
  • 4/8/16 Arm A72 cores

Rivermax™

As the Media and Entertainment (M&E) live video broadcasting industry shifts from a Serial Digital Interface (SDI) to IP-based infrastructure, broadcasters are reaping such benefits as production scalability and flexibility. IP-based solutions also addresses the high bandwidth requirement of 4K UHD and 8K UHD video formats.

Rivermax implements an optimized software library API for the media streaming application. Rivermax runs on Mellanox ConnectX®-5 or higher network adapters, enabling the use of common off-the-shelf (COTS) servers for HD to Ultra HD flows. The Rivermax-ConnectX®-5 adapter cards combination also enables compliance with SMPTE 2110-21, reduces CPU utilization for video data streaming, and removes bottlenecks for the highest throughput – reaching 82 Gbps with a single CPU core. Rivermax is JT-NM tested.

Rivermax™

model no.

description

key features

Video Streaming Library for Media and Entertainment, Smart Cities and Content Delivery Networks (CDNs)

  • Single Xeon core receives or sends 64 HD streams
  • Performance scales linearly
  • SMPTE 2110-21 compliance with network adapter packet pacing even at 100GbE
  • SMPTE ST 2022-6 Transport, 2110-30 Audio, and 2110-40 Ancillary for live production

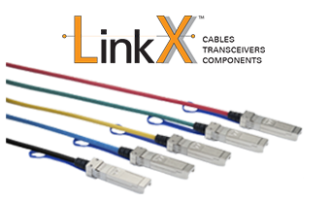

Mellanox Cables & Optical Modules

Supporting data rates up to 100Gb/s
Mellanox cables are a cost-effective solution for connecting high bandwidth fabrics, extending the benefits of Mellanox’s high-performance InfiniBand and 10/25/40/50/100GbE adapters throughout the network. In addition to meeting or exceeding IBTA and IEEE standards, Mellanox Certified cables are tested on Mellanox equipment to ensure optimal signal integrity and the best end-to-end performance.

Mellanox Cables & Optical Modules

model no.

description

key features

Mellanox’s LinkX Active Optical Cables (AOC) provide outstanding performance for high-bandwidth fabrics.  Available in SFP and QSFP form factors at 25, 40, and 100G data rates of and lengths up to 200m.

  • BER less than 1E-15
  • Just “plug and play”
  • Low power consumption
  • Lighter than copper cables

Mellanox’s LinkX Direct Attached Copper (DAC) Cables is the most cost effective way to build high-bandwidth fabrics within a rack.  Available in SFP and QSFP form factors at 25, 40, 50 and 100G data rates of and 0.5 to 7m lengths.

  • BER less than 1E-15
  • Lowest cost
  • Zero power consumption
  • Lowest latency

Mellanox’s LinkX Optical Modules provide flexibility when designing high-bandwidth fabrics.  Available in SFP and QSFP form factors,  SR, LR, SR4, LR4, PSM4 supporting reaches up to 10km.

  • BER less than 1E-15
  • SFP and QSFP form factor
  • Low power consumption
  • Extensive 10/25/40/50/100G product offering

Mellanox Software

Mellanox’s comprehensive suite of management software provides an innovative application-centric approach to bridge the gap between servers, applications and fabric elements.

model no.

description

key features

A powerful platform for managing scale-out computing networks. It enables data center operators to efficiently provision, monitor and operate the modern data center fabric.

  • Reduces complexity of fabric management
  • In-depth visibility into traffic & health information
  • Network API supports integration,



Boosts performance for message-based and streaming applications such as those found in financial services market data environments and Web2.0 clusters.

  • Support Ethernet (10/40 GbE)
  • Supports InfiniBand (QDR/FDR) networks with ConnectX®-3 & ConnectX®-3 Pro
  • Support Ethernet (1/10/25/40/50/100 GbE) networks with ConnectX®-4 &
    ConnectX®-4 Lx
  • Supports InfiniBand (SDR, QDR, FDR, FDR10, EDR) networks with ConnectX®-4
