ExaNIC X10

The ExaBlaze ExaNIC is a 10Gbps PCI Express network card interface card specifically optimised for low latency environments. While initially conceived and built for use in latency-sensitive financial applications such as high frequency trading, the ExaNIC has appeal that extends to any environment where latency is key.

Get a Quote

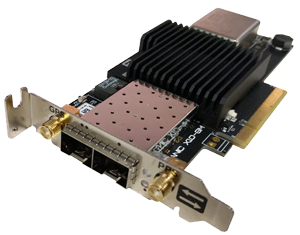

XENON Exablaze ExaNIC X10-GM
Model Number
ExaBlaze ExaNIC X10
Model Number

Typical latency, raw frames

ExaBlaze ExaNIC X10

  • 60 bytes: 780ns
  • 300 bytes: 1μs
Model Number

Typical latency, raw frames with preloaded TX buffer

ExaBlaze ExaNIC X10

  • 60 bytes: 710 ns
  • 300 bytes: 930 ns
Model Number

Typical latency, UDP

ExaBlaze ExaNIC X10

  • 14 bytes: 880ns
  • 300 bytes: 1.2μs
Model Number

Typical Latency, TCP

ExaBlaze ExaNIC X10

  • 14 bytes: 930ns
  • 300 bytes: 1.2μs
Model Number

Form factor

ExaBlaze ExaNIC X10

  • Low profile PCI Express Card
  • 117x68mm (4.65x2.67in)
Model Number

Ports

ExaBlaze ExaNIC X10

  • 2 SFP+
  • SMA for PPS in/out
Model Number

Data rates

ExaBlaze ExaNIC X10

10GbE, 1GbE, 100M Fast Ethernet

Model Number

Supported Media

ExaBlaze ExaNIC X10

Fiber (10GBASE-SR, 10GBASE-LR, 1000BASE-SX), SFP+ Direct Attach

Model Number

Host Interface

ExaBlaze ExaNIC X10

PCIe x8 Gen 3 @ 8.0 GT/s per lane

Model Number

Data rates

ExaBlaze ExaNIC X10

10GBASE-LR

Model Number

Operating Systems

ExaBlaze ExaNIC X10

  • Linux x86_64 (all distributions)
  • Windows (coming soon)
Model Number

Timestamp resolution

ExaBlaze ExaNIC X10

6.2ns

Model Number

Timestamp availability

ExaBlaze ExaNIC X10

  • All received frames, most recent transmitted frame
  • Time synchronisation: Host, hardware assisted PTP, optional PPS
  • PPS input/output: 3.3V CMOS, selectable 50ohm termination
Model Number

Bridging

ExaBlaze ExaNIC X10

Optional forwarding between ports 1 and 2, latency <110ns

Model Number

Capture

ExaBlaze ExaNIC X10

Line rate capture to disk

Model Number

Flow steering

ExaBlaze ExaNIC X10

  • 128 IP rules per port
  • 64 MAC rules per port
Model Number

FPGA Development Kit

ExaBlaze ExaNIC X10

  • Add custom user logic to FPGA
  • Xilinx Ultrascale XCKU035-2
  • Fully integrated with drivers, utilities & TCP/UDP stack
