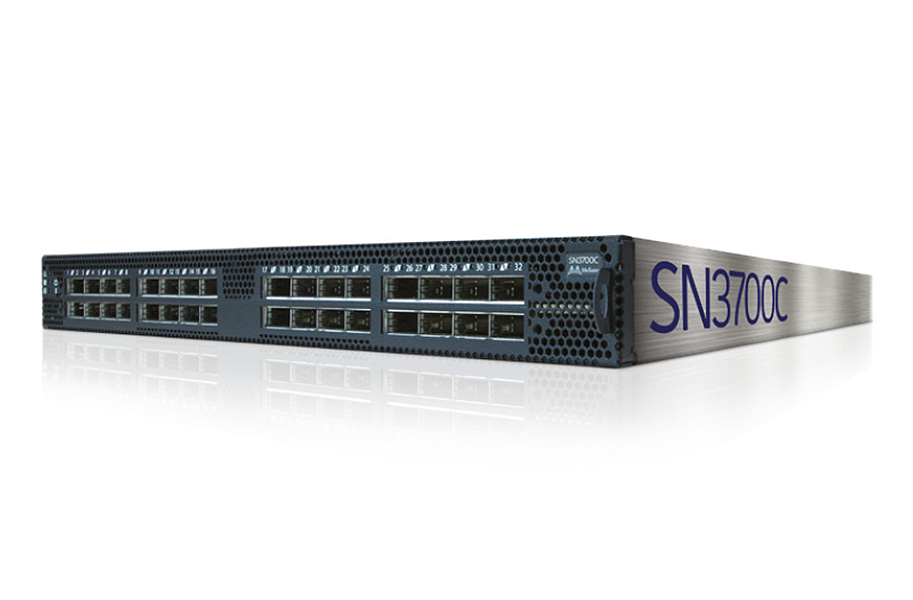

NVIDIA SPECTRUM SN3700C «NEW»

The NVIDIA Spectrum SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables. SN3700C allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. Spectrum SN3700C ports are fully splittable to up to 128 x 10/25GbE ports.

Get a Quote
Model Number
NVIDIA Spectrum SN3700C
Model Number

Connectors

NVIDIA Spectrum SN3700C

32 QSFP28 100GbE

Model Number

Max. 100GbE Ports

NVIDIA Spectrum SN3700C

4x 25G Lanes: 32

Model Number

Max. 50GbE Ports

NVIDIA Spectrum SN3700C

2x 25G Lanes: 64

Model Number

Max. 40GbE Ports

NVIDIA Spectrum SN3700C

64

Model Number

Max. 25GbE Ports

NVIDIA Spectrum SN3700C

128

Model Number

Max. 10GbE Ports

NVIDIA Spectrum SN3700C

128

Model Number

Throughput

NVIDIA Spectrum SN3700C

6.4Tb/s

Model Number

Packet Per Second

NVIDIA Spectrum SN3700C

4.76Bpps

Model Number

Latency

NVIDIA Spectrum SN3700C

sub-400ns

Model Number

CPU

NVIDIA Spectrum SN3700C

Dual-core x86

Model Number

System Memory

NVIDIA Spectrum SN3700C

8GB

Model Number

SSD Memory

NVIDIA Spectrum SN3700C

16GB

Model Number

Packet Buffer

NVIDIA Spectrum SN3700C

42MB

Model Number

100/1000Mb/s Mgmt Ports

NVIDIA Spectrum SN3700C

1

Model Number

Serial Ports

NVIDIA Spectrum SN3700C

1 RJ45

Model Number

USB Ports

NVIDIA Spectrum SN3700C

1

Model Number

Hot-Swap Power Supplies

NVIDIA Spectrum SN3700C

2 (1+1 redundant)

Model Number

Hot-Swappable Fans

NVIDIA Spectrum SN3700C

4 (N+1 redundant)

Model Number

Reversible Airflow Option

NVIDIA Spectrum SN3700C

Yes

Model Number

Power Supplies

NVIDIA Spectrum SN3700C

  • Frequency: 50-60Hz
  • Input range: 100-264 AC
  • Input current: 4.5-2.9A
Model Number

Size (H x W x D)

NVIDIA Spectrum SN3700C

1.72’’ x 16.84’’ x 22’’ (44mm x 428mm x 559mm)

Model Number

Weight

NVIDIA Spectrum SN3700C

11.1kg (24.5lb)
