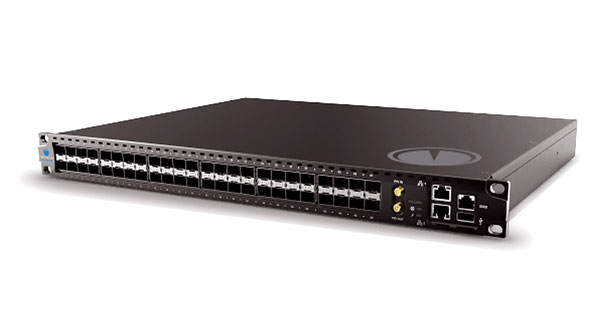

MetaMux 48E «NEW»

MetaMux 48E is a hybrid multi-layer switch designed for the most latency critical networks such as trading environments.

It is multiple switches in one – performing layer 1 switching in only 5 ns and multiplexing/aggregation in 55 ns, making it extremely useful for connecting trading machines directly to exchanges.

Features and Benefits:

  • Fast multiplexing: Aggregate streams from multiple sources into a single stream for hand-off to exchanges, microwave links, or WAN links. Also configurable as multiple many-to-one multiplexers.
  • Integrated layer 1 switching: Patching, media conversion, tapping replication and packet statistics. Wire-once to reduce visits to the data center. Use Layer 1 broadcast to implement a return path with a latency of just 5 ns and virtually no jitter.
  • Deterministic: Replaces taps to monitor or share feeds such as market-data with full regeneration and no additional overhead.
  • Flexible SFP/SFP+ support: Allows the use of less expensive modules, including direct attached copper cables, that are boosted by MetaMux’s high-performance signal recovery and regeneration.
  • Protocol flexibility: Protocol agnostic at layer 1 while layer 2 packet features support 1GbE and 10GbE with 100M. 100M Ethernet and rate conversion are planned for a future software release.
  • Packet statistics: Advanced monitoring. Captures high-level packet statistics across all ports. Supports detailed switch statistics via SNMP or CLI. Provides tcpdump and LLDP on every port.
  • FPGA Development: Flexible platform with all 48 ports connected to the onboard Xilinx® Ultrascale™ or Ultrascale+ FPGA(s) for custom applications.
  • x86-64 Linux management: Uses open standards platform and MOS operating software to provide user extensible solutions.
Get a Quote
Model Name
Metamako MetaMux 48K
Model Name

Layer 1

Metamako MetaMux 48K

  • 5 ns latency with virtually no jitter
  • Non-blocking matrix switching fabric
  • SFP/SFP+ ports from 100M-11.3Gbps
  • Bit-for-bit forwarding for any protocol
  • Unlimited port-to-port mirroring with regeneration
  • Multiple independent links through the device are supported at different data-rates
  • High performance signal recovery, regeneration and conditioning (EDC on input, CDR on input and output)
Model Name

Cable Compatibility

Metamako MetaMux 48K

  • Compatible with SR, LR, ZR and LRM SFP/SFP+ modules and direct attach cables
  • Drive any MSA compliant SFP/SFP+ module
  • Works with long list of third-party SFP/SFP+ modules
  • 100M,1GbE, 10GbE and many others
Model Name

Management Platform

Metamako MetaMux 48K

  • Quad-core, hyperthreaded x86-64 CPU
  • 4GB RAM, on-board SSD
  • Industry standard command line interface (serial/SSH/telnet)
  • Web-based GUI
  • Linux based (shells, scripting, Python, RPMs etc.)
  • Binary compatibility with other x86-64 based Linux systems
  • Firmware restore and update via USB, serial and network
  • A future software release will provide a switch subsystem API and allow user applications to run in a VM
Model Name

Management Protocols

Metamako MetaMux 48K

  • HTTP/S, SSH, telnet
  • Serial console
  • PTP, NTP
  • SNMP v1, v2, v3
  • DHCP
  • Network boot via TFTP (Available in a future software release)
  • Local and remote syslog
  • RADIUS and TACAS+ authentication
Model Name

Operating Environment

Metamako MetaMux 48K

  • Temperature: 0°C to 40°C
  • Humidity: 10% to 85%, non-condensing
  • Maximum altitude: 3000m (9800ft)
Model Name

Physical And Electrical

Metamako MetaMux 48K

  • Dimensions (h x w x d): 4.3 x 44.8 x 37.9cm (1.7 x 17.6 x 14.9in)
  • Weight: ~8kg (17.6lbs), depending on configuration
  • Maximum power: 290W
  • AC voltage range: 100-240V, AC frequency: 50/60Hz
  • DC voltage range: 40-72V
