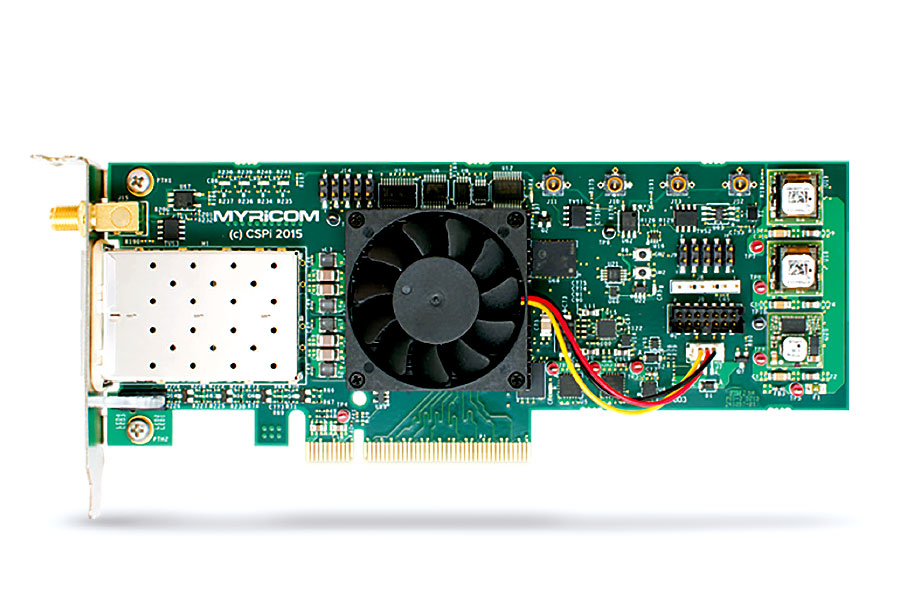

Myricom ARC Series E-Class Network Adapter «NEW»

The E-Class uses an optimized combination of hardware, FPGA firmware and software libraries to deliver application specific functionality in a cost-effective package.

Get a Quote
Model Number
Myricom ARC Series E-Class Network Adapter
Model Number

Bus Interface

Myricom ARC Series E-Class Network Adapter

PCI Express Gen 3, 8 lanes wide

Model Number

Form Factor

Myricom ARC Series E-Class Network Adapter

Low-profile PCI Express x8 ships with a standard height faceplate installed and low-profile faceplate in the box. Optional timing kit has a standard height faceplate with coax connectors installed

Model Number

Electrical Power

Myricom ARC Series E-Class Network Adapter

25 watts or less for all ARC Series models

Model Number

Environmental

Myricom ARC Series E-Class Network Adapter

CSPi recommends that E-Class adapters be installed into servers that provide some air flow over the PCIe slots (very common). Use in an office or computer room environment

Model Number

Passive Copper Cable Length

Myricom ARC Series E-Class Network Adapter

7 meters with a quality, passive, copper cable. Not all passive cable specifications support this length

Model Number

Operating Systems

Myricom ARC Series E-Class Network Adapter

Support for all major Linux distributions as well as Windows 2008R2 and newer

Model Number

Connections

Myricom ARC Series E-Class Network Adapter

Dual or Quad SFP+ 10GbE ports

Get a Quote Talk to a Solutions Architect
