Description

Enables the development of millions of new small, low-cost, low-power AI systems.

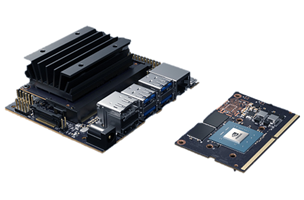

At just 70 x 45 mm, the Jetson Nano module is the smallest Jetson device. This production-ready System on Module (SOM) delivers big when it comes to deploying AI to devices at the edge across multiple industries—from smart cities to robotics.

Jetson Nano delivers 472 GFLOPs for running modern AI algorithms fast. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously, making it ideal for applications like entry-level Network Video Recorders (NVRs), home robots, and intelligent gateways with full analytics capabilities. Now you can experience powerful and efficient AI, computer vision, and high-performance computing at just 5 to 10 watts.

Specifications

| Print

Key Features

GPU

NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores

CPU

Quad-core ARM® Cortex®-A57 MPCore processor

Memory

4 GB 64-bit LPDDR4

Storage

16 GB eMMC 5.1 Flash

Video Encode

4K @ 30 (H.264/H.265)

Video Decode

4K @ 60 (H.264/H.265)

Camera

12 lanes (3x4 or 4x2) MIPI CSI-2 DPHY 1.1 (1.5 Gbps)

Connectivity

Gigabit Ethernet

Display

HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous

UPHY

1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0

I/O

1x SDIO / 2x SPI / 6x I2C / 2x I2S / GPIOs

Size

69.6 mm x 45 mm

Mechanical

260-pin edge connector
