Description

This is an AI supercomputer on a module, powered by NVIDIA Pascal™ architecture. Best of all, it packs this performance into a small, power-efficient form factor that’s ideal for intelligent edge devices like robots, drones, smart cameras, and portable medical devices. It supports all the features of the Jetson TX1 module while enabling bigger, more complex deep neural networks.

This kit highlights the hardware capabilities and interfaces of the Jetson TX2 board, comes with design guides and documentation, and is pre-flashed with a Linux development environment. It also supports the NVIDIA Jetpack SDK, which includes the BSP, libraries for deep learning, computer vision, GPU computing, multimedia processing, and more.

Specifications

| Print

Key Features

Jetson TX2 Module

  • NVIDIA® Pascal™ Architecture GPU
  • 2 Denver 64-bit CPUs + Quad-Core A57 Complex
  • 8 GB L128 bit DDR4 Memory
  • 32 GB eMMC 5.1 Flash Storage
  • Connectivity to 802.11ac Wi-Fi and Bluetooth-Enabled Devices
  • 10/100/1000BASE-T Ethernet

Jetson Camera Module

5 MP Fixed Focus MIPI CSI Camera

Buttons

  • Power On/Off
  • Reset
  • Force Recovery
  • User-Defined

I/O

*I/O expansion headers: refer to product documentation for header specification.

  • USB 3.0 Type A
  • USB 2.0 Micro AB (supports recovery and host mode)
  • HDMI
  • M.2 Key E
  • PCI-E x4
  • Gigabit Ethernet
  • Full-Size SD
  • SATA Data and Power
  • GPIOs, I2C, I2S, SPI, CAN*
  • TTL UART with flow control
  • Display Expansion Header*
  • Camera Expansion Header*

Power Options

External 19V AC Adapter

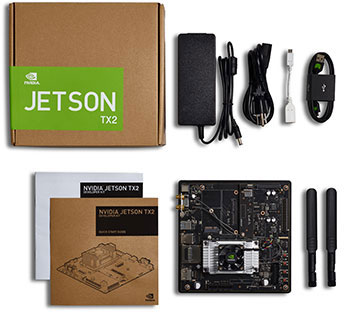

Kit Contents

  • NVIDIA® Jetson TX2 Developer Board
  • AC Adaptor
  • Power Cord
  • USB Micro-B to USB A Cable
  • USB Micro-B to Female USB A Cable
  • Rubber Feet (4)
  • Quick Start Guide
  • Safety Booklet
  • Antennas to Connect to Wi-Fi-Enabled Devices (2)
