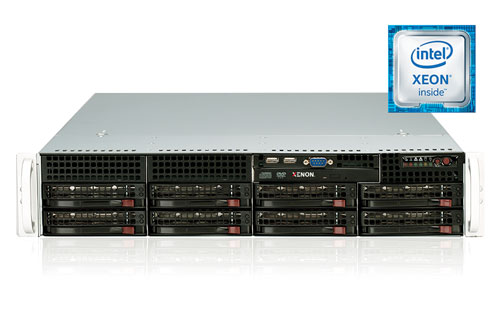

RADON™ Duo R1190

The RADON™ Duo R1190 is an entry to medium level 1U or 2U rack server that’s optimised for workloads that require up to 1TB of RAM.

Get a Quote
Model Number
RADON™ Duo R1190
Model Number

Chassis Profile

RADON™ Duo R1190

Rack - 1U / 2U form factor

Model Number

Chipset

RADON™ Duo R1190

Intel® C621 Chipset

Model Number

Processor

RADON™ Duo R1190

Dual Intel® Xeon® Scalable Processor family

Model Number

Max. Cores

RADON™ Duo R1190

44

Model Number

Max. Memory

RADON™ Duo R1190

1TB DDR4 ECC Registered DIMM

Model Number

Storage

RADON™ Duo R1190

  • 1U: 4x 3.5" SAS/SATA hot-swap
  • 1U: 8x 2.5" SAS/SATA hot-swap
  • 2U: 8x 3.5" SAS/SATA hot-swap
Model Number

RAID Card

RADON™ Duo R1190

Optional LSI 3008/3108 RAID adapter

Model Number

Expansion

RADON™ Duo R1190

  • 1U: 1x PCI-E 3.0 x8
  • 2U: 2x PCI-E 3.0 x16 + 3x PCI-E 3.0 x8 + 4x PCI-E 3.0 x4
Model Number

Networking

RADON™ Duo R1190

2x Lewisburg Marvell 88E1512 GbE LAN

Model Number

IPMI Remote Managment

RADON™ Duo R1190

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Model Number

Power Supply

RADON™ Duo R1190

Up to 600W PSU

Model Number

Dimensions

RADON™ Duo R1190

  • Height: 1U - 1.7" (43mm) / 2U - 3.4" (86mm)
  • Width: 17.2" (437mm)
  • Depth: 25.5" (647 mm)
Model Number

System Software

RADON™ Duo R1190

  • Microsoft Windows Server 2012 (x64)
  • Microsoft Windows Server 2016 (x64)
  • Red Hat Enterprise Linux Server 6, 7
  • CentOS 6, 7
Model Number

Support

RADON™ Duo R1190

XENON offers Global Sales and Support
