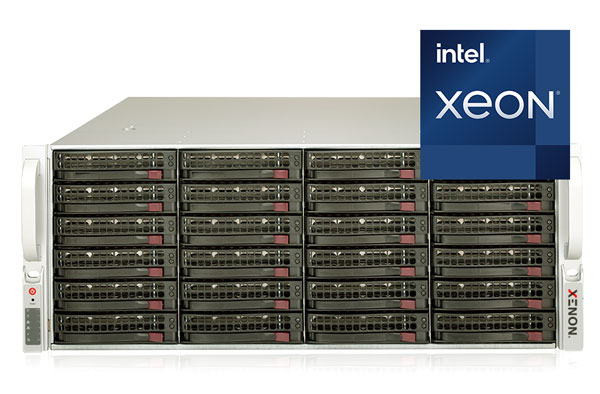

RADON™ Duo R1490

The RADON™ Duo R1490 is a mid to high level 2U / 3U / 4U rack server that’s optimised for mixed workloads that require internal storage of up to 36x 3.5″ HDDs.

Get a Quote

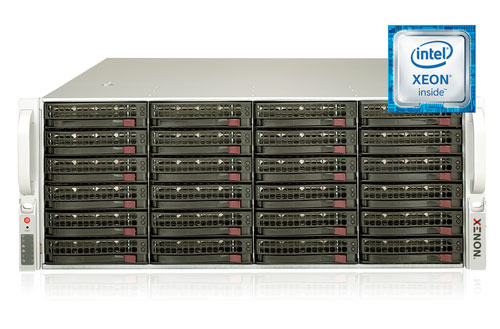

XENON Rack Server R1480 4U
Model Number
RADON™ Duo R1480
Model Number

Chassis Profile

RADON™ Duo R1480

Rack - 2U / 3U / 4U form factor

Model Number

Chipset

RADON™ Duo R1480

Intel® C622 Chipset

Model Number

Processor

RADON™ Duo R1480

Dual Intel® Xeon® Scalable Processor family

Model Number

Max. Cores

RADON™ Duo R1480

56

Model Number

Max. Memory

RADON™ Duo R1480

2TB DDR4 ECC Registered DIMM

Model Number

Storage

RADON™ Duo R1480

  • 2U: Up to 12x 3.5" Hot-swap SAS/SATA Drive Bays
  • 3U: Up to 16x 3.5" Hot-swap SAS/SATA Drive Bays
  • 4U: Up to 36x 3.5" Hot-swap SAS/SATA Drive Bays
Model Number

RAID Card

RADON™ Duo R1480

Optional LSI 3008/3108 RAID adapter

Model Number

Expansion

RADON™ Duo R1480

  • 3x PCI-E 3.0 x16
  • 4x PCI-E 3.0 x8
Model Number

Networking

RADON™ Duo R1480

  • 2x Intel® x557 10GbE LAN
Model Number

IPMI Remote Managment

RADON™ Duo R1480

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Model Number

Power Supply

RADON™ Duo R1480

Up to 1200W RPSU

Model Number

Dimensions

RADON™ Duo R1480

  • Height: 2U - 3.5" (89mm) / 3U - 5.2" (132mm) 2U - 7" (89mm)
  • Width: 17.2″ (437mm)
  • Depth: 27.5" (699 mm)
Model Number

System Software

RADON™ Duo R1480

  • Microsoft Windows Server 2012 (x64)
  • Microsoft Windows Server 2016 (x64)
  • Red Hat Enterprise Linux Server 6, 7
  • Suse Enterprise Linux Server 11, 12
  • CentOS 6, 7
Model Number

Software Solution Stack

RADON™ Duo R1480

  • Cluster Management Software
  • Job Scheduling/Workload Management: Altair® PBS Professional™
  • Adaptive Computing TM Moab® HPC Suite Enterprise Edition
  • SLURM
Model Number

Support

RADON™ Duo R1480

XENON offers Global Sales and Support

Get a Quote Talk to a Solutions Architect
