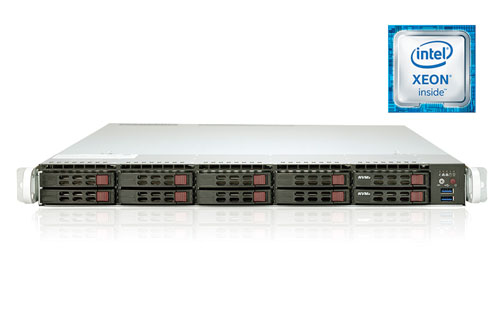

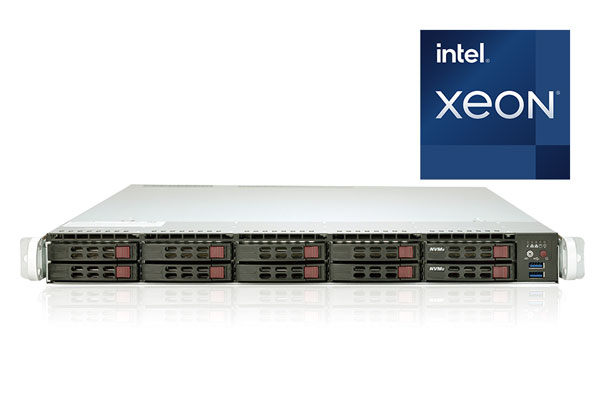

RADON™ Duo R1890

The RADON™ Duo R1890 is a compact 1U / 2U rack server that’s optimised for heavy workloads that require up to 3TB of RAM.  The system can be configured with a variety of dual or quad 1/10/25GbE for easy integration into high-performance network fabrics.

Get a Quote
XENON Rack Server R1890
Model Number
RADON™ Duo R1890
Model Number

Chassis Profile

RADON™ Duo R1890

Rack - 1U / 2U form factor

Model Number

Chipset

RADON™ Duo R1890

Intel® C621 Chipset

Model Number

Processor

RADON™ Duo R1890

Dual Intel® Xeon® Scalable Processor family

Model Number

Max. Cores

RADON™ Duo R1890

56

Model Number

Max. Memory

RADON™ Duo R1890

3TB DDR4 ECC Registered DIMM

Model Number

Storage

RADON™ Duo R1890

  • 1U: 4x 3.5" NVMe/SATA/SAS Hot-swap drive bays
  • 1U: 10x 2.5" NVMe/SATA/SAS Hot-swap drive bays
  • 2U: 12x 3.5" NVMe/SATA/SAS Hot-swap drive bays
  • 2U: 24x 2.5" NVMe/SATA/SAS Hot-swap drive bays
Model Number

RAID Card

RADON™ Duo R1890

Optional LSI 3008/3108 RAID adapter

Model Number

Expansion

RADON™ Duo R1890

  • 1U: 2x PCI-E 3.0 x16 + 2x PCI-E 3.0 x8
  • 2U: 1x PCI-E 3.0 x16 + 7x PCI-E 3.0 x8
Model Number

Networking

RADON™ Duo R1890

  • 2x Intel® 10GbE LAN
  • Optional 4x Intel® 10GbE LAN
  • Optional 2x Intel® 10GbE SFP+ LAN
  • Optional 2x Intel® 25GbE SFP28 + GbE LAN
Model Number

IPMI Remote Managment

RADON™ Duo R1890

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Model Number

Power Supply

RADON™ Duo R1890

Up to 1600W RPSU

Model Number

Dimensions

RADON™ Duo R1890

  • Height: 1U 1.7" (43mm) / 2U 3.4" (86mm)
  • Width: 17.2" (437mm)
  • Depth: 27.8" (707mm)
Model Number

System Software

RADON™ Duo R1890

  • Microsoft Windows Server 2012 (x64)
  • Microsoft Windows Server 2016 (x64)
  • Red Hat Enterprise Linux Server 6, 7
  • Suse Enterprise Linux Server 11, 12
  • CentOS 6, 7
  • VMware certified
Model Number

Software Solution Stack

RADON™ Duo R1890

  • Cluster Management Software
  • Job Scheduling/Workload Management: Altair® PBS Professional™
  • Adaptive Computing TM Moab® HPC Suite Enterprise Edition
  • SLURM
Model Number

Support

RADON™ Duo R1890

XENON offers Global Sales and Support
