Description

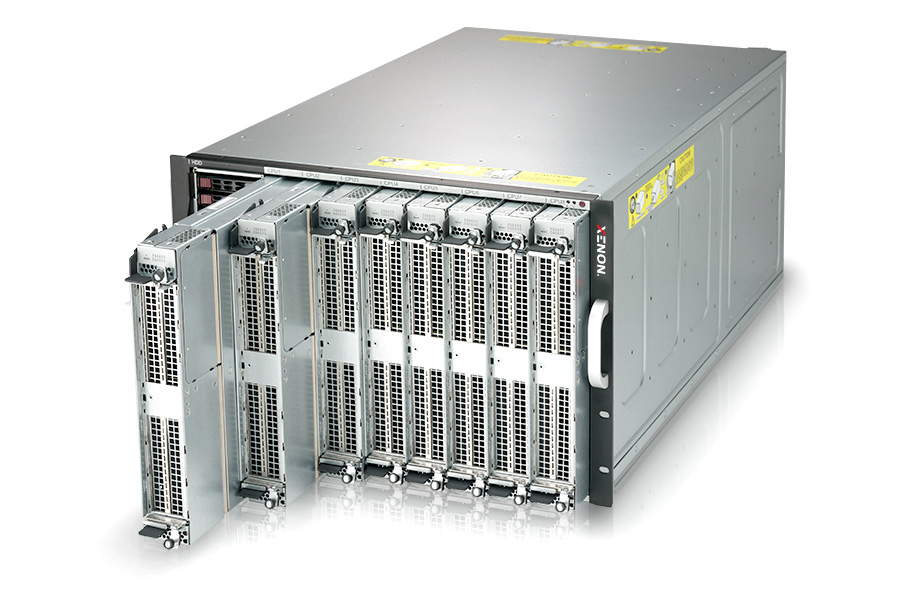

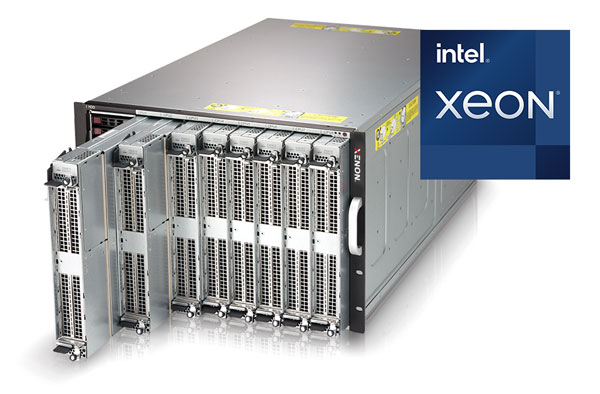

XENON’s Radon Octo R8490 8-way rack server is a new generation high-end 8-way server. Equipped with the industry leading high-speed interconnection design. It has five essential features and the highest specifications in the industry.

Specifications

| Print

Model Number

Radon Octo R8490

Chassis Profile

Rack - 7U form factor

Chipset

Intel® C621

Processor

8 x Intel® Xeon® Scalable Processor family

Max. Cores

224

Max. Memory

96 DIMM memory sticks and expansion to 12TB memory at the maximum

Storage

16x 2.5" Hot-swap drive bays

RAID Card

Optional LSI 3008/3108 RAID adapter

Expansion

23 standard or 39 OEM PCI-E3.0 slots

Networking

4x Intel® x550 10GbE LAN

IPMI Remote Managment

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Power Supply

5x 1600W (N+2) RPSU

Dimensions

  • Height: 12.2" (310mm)
  • Width: 17.63" (448mm)
  • Depth: 28.87" (733mm)

System Software

  • Microsoft Windows Server 2012 (x64)
  • Microsoft Windows Server 2016 (x64)
  • Red Hat Enterprise Linux Server 6, 7
  • Suse Enterprise Linux Server 11, 12
  • CentOS 6, 7
  • VMware certified

Software Solution Stack

  • Cluster Management Software
  • Job Scheduling/Workload Management: Altair® PBS Professional™
  • Adaptive Computing TM Moab® HPC Suite Enterprise Edition
  • SLURM

Support

XENON offers Global Sales and Support
