Description

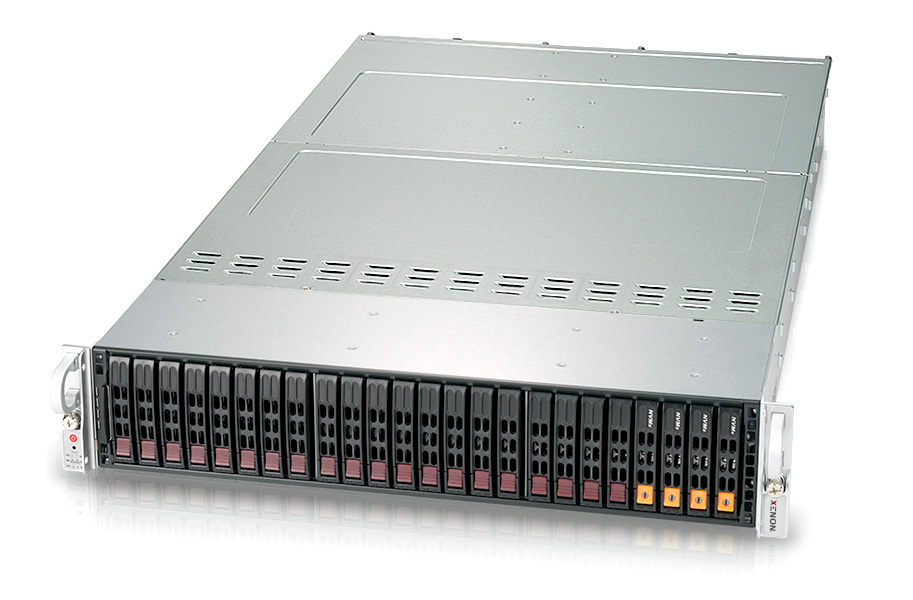

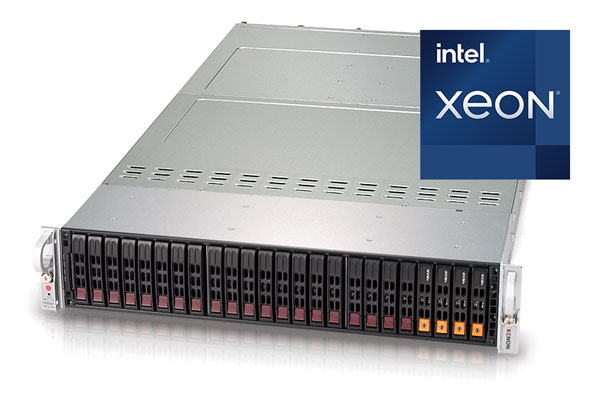

The RADON Quattro R7190 high-end server features up to four Intel® Xeon Scalable Processors with up to 28-cores per socket to deliver efficient data sharing capabilities. In addition, the enhanced cache structure and integrated memory controller provide sustained multi-threaded application throughput. This server offers outstanding processing power and can increase performance-per-watt to improve IT responsiveness while maintaining costs.

Specifications

| Print

Model Number

Radon Quattro R7180

Chassis Profile

Rack - 2U form factor

Chipset

Intel® C621 chipset

Processor

4x Intel® Xeon® Scalable Processor family

Max. Cores

112

Max. Memory

6TB DDR4 ECC LR DIMM

Storage

24x 2.5" Hot-swap drive bays

RAID Card

Optional LSI 3008/3108 RAID adapter

Expansion

  • 6x PCI-E 3.0 x16
  • 5x PCI-E 3.0 x8

Networking

4x Intel® i350 GbE LAN

IPMI Remote Management

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Power Supply

1600W RPSU

Dimensions

  • Height: 3.5" (89mm)
  • Width: 17.2" (437mm)
  • Depth: 30.7" (780mm)

System Software

  • Microsoft Windows Server 2012 (x64)
  • Microsoft Windows Server 2016 (x64)
  • Red Hat Enterprise Linux Server 6,7
  • Suse Enterprise Linux Server 11, 12
  • CentOS 6, 7
  • VMware certified

Support

XENON offers Global Sales and Support
