RADON™ Solo R690

The RADON™ Solo R690 is a flexible 1U and 2U rack server solution that supports up to 5x PCIe expansion slots.

Get a Quote

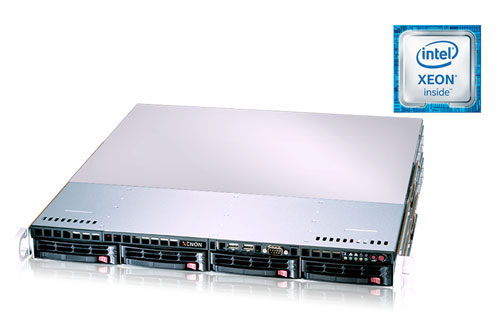

XENON SINGLE RACK R680
Model Number
RADON™ Solo R690
Model Number

Chassis Profile

RADON™ Solo R690

Rack - 1U / 2U form factor

Model Number

Chipset

RADON™ Solo R690

Intel® C622 chipset

Model Number

Processor

RADON™ Solo R690

Single Intel® Xeon® Scalable Processor family

Model Number

Max. Cores

RADON™ Solo R690

28

Model Number

Max. Memory

RADON™ Solo R690

768GB DDR4 ECC Registered DIMM

Model Number

Storage

RADON™ Solo R690

  • 1U: 4x 3.5″ SAS/SATA hot-swap
  • 1U: 10x 2.5″ SAS/SATA hot-swap
  • 2U: 8x 3.5″ SAS/SATA hot-swap
Model Number

RAID Card

RADON™ Solo R690

Optional LSI 3008/3108 RAID adapter

Model Number

Expansion

RADON™ Solo R690

  • 1U: 2x PCI-E 3.0 x16 FHFL + 1x PCI-E 3.0 x8 LP
  • 2U: 4x PCI-E 3.0 x8 FHFL + 1x PCI-E 3.0 x8 LP
Model Number

Networking

RADON™ Solo R690

  • 2x Intel® X722 + X557 10GbE LAN
Model Number

IPMI Remote Management

RADON™ Solo R690

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Model Number

Power Supply

RADON™ Solo R690

500W RPSU

Model Number

Dimensions

RADON™ Solo R690

  • Height: 1.7" (43mm)
  • Width: 17.2"(437mm)
  • Depth: 16.9" (650mm)
Model Number

System Software

RADON™ Solo R690

  • Microsoft Windows Server 2012 (x64)
  • Microsoft Windows Server 2016 (x64)
  • Red Hat Enterprise Linux Server 6, 7
  • CentOS 6, 7
Model Number

Support

RADON™ Solo R690

XENON offers Global Sales and Support
